MICKY POWER+ TMT 600 SD

One bar.
Fifty-year promise.

Drag to spin. Scroll to look closer.

Grip

Cross ribs
lock into concrete.

The POWER+ rib pattern, two curved ribs and a cross of lenses, is rolled to a tight tolerance so the bond with concrete holds under load and vibration.

Inside

Hard outside.
Ductile inside.

Thermo-mechanical treatment quenches the surface into a hard rim and lets the core self-temper. That is what lets the bar bend without breaking.

Keep scrolling to cut the bar open.

Hardened rim

Quenched surface, tempered martensite

Ductile core

Self-tempered ferrite and pearlite

Bends. Never breaks.

Super Ductile: 21% elongation before failure

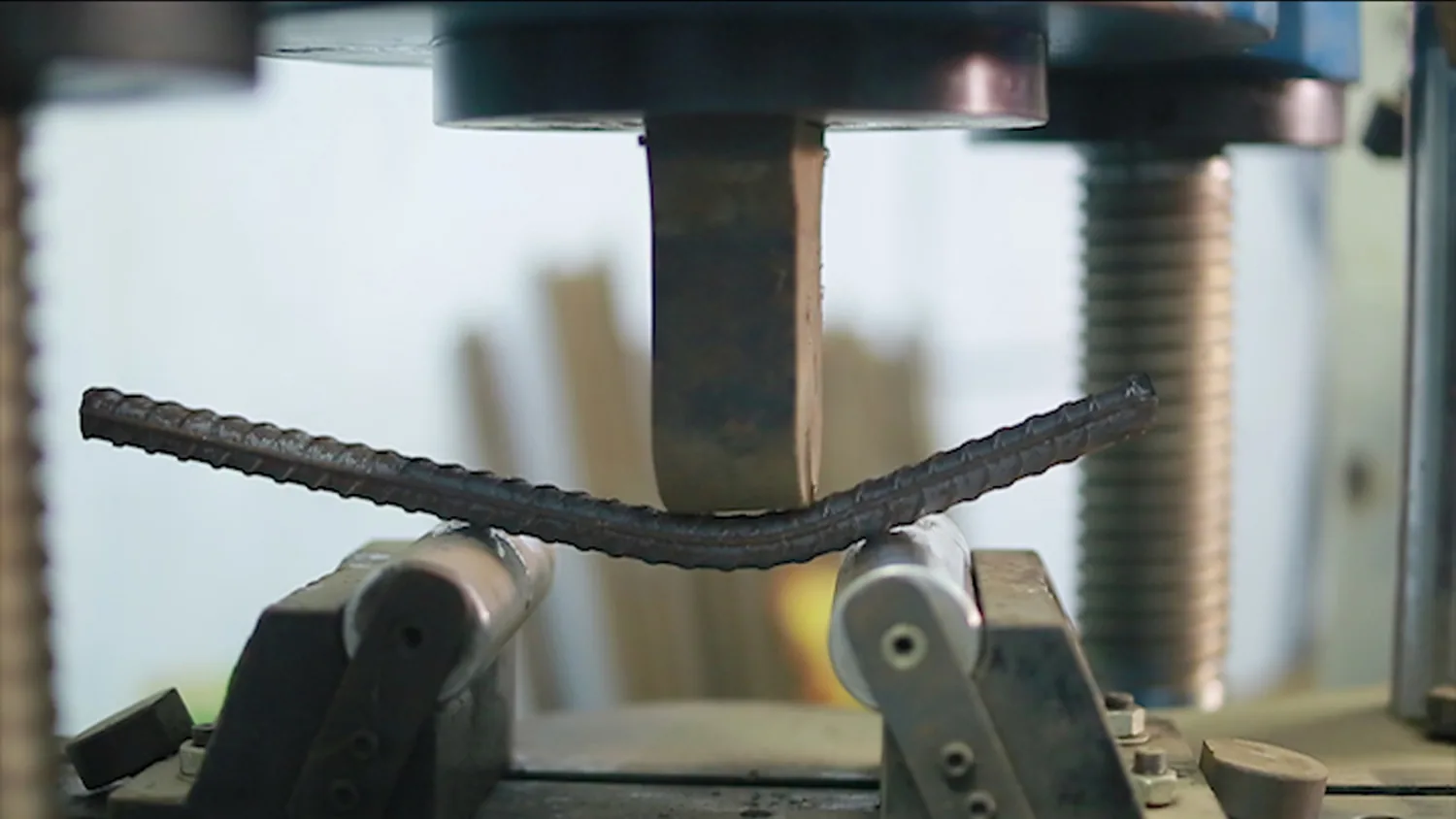

POWER+ bar folded double in the bend test

Weather

Made for
coastal air.

Corrosion-resistant chemistry for Bengal's humidity, brackish water and riverside sites. Fire-resistant to structural codes.

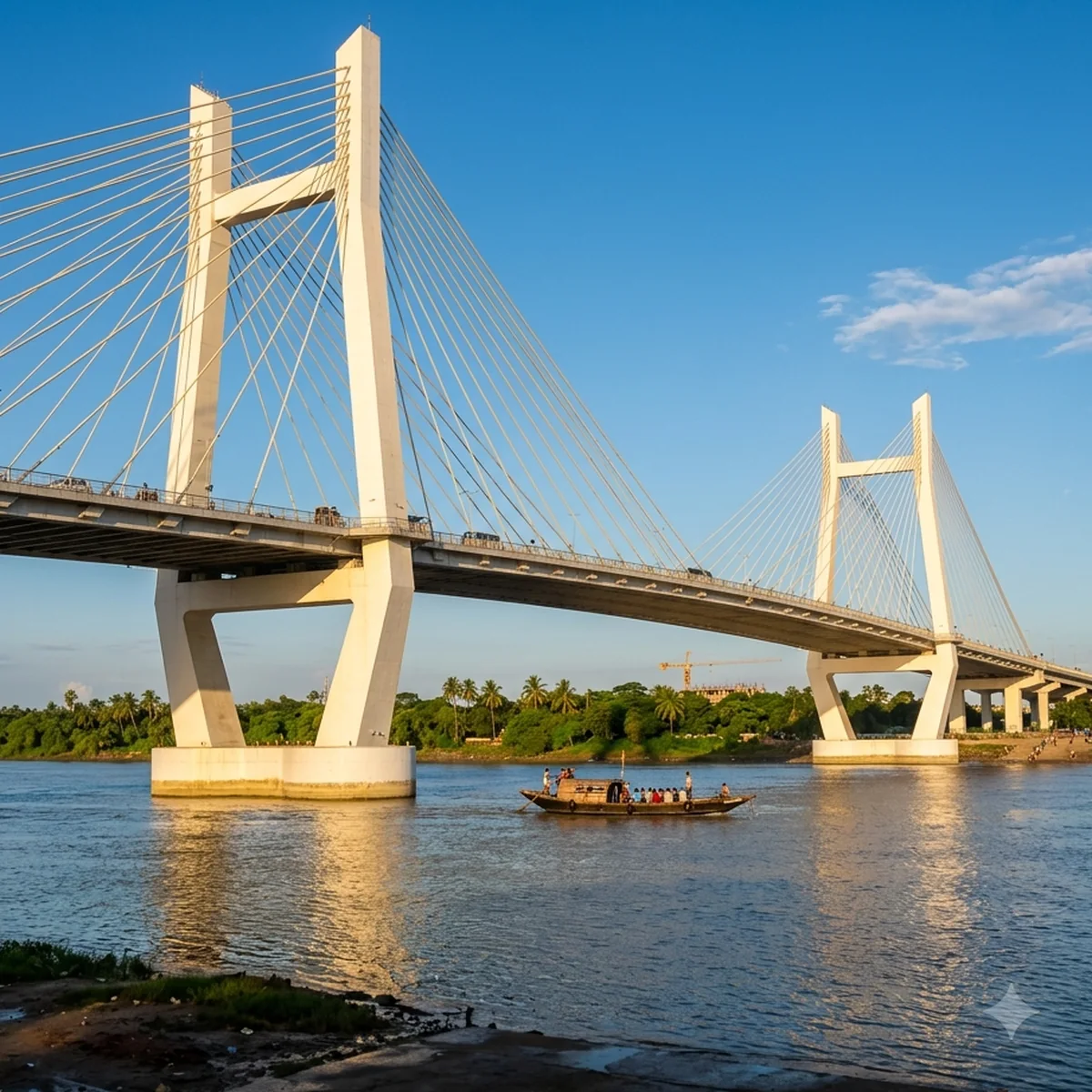

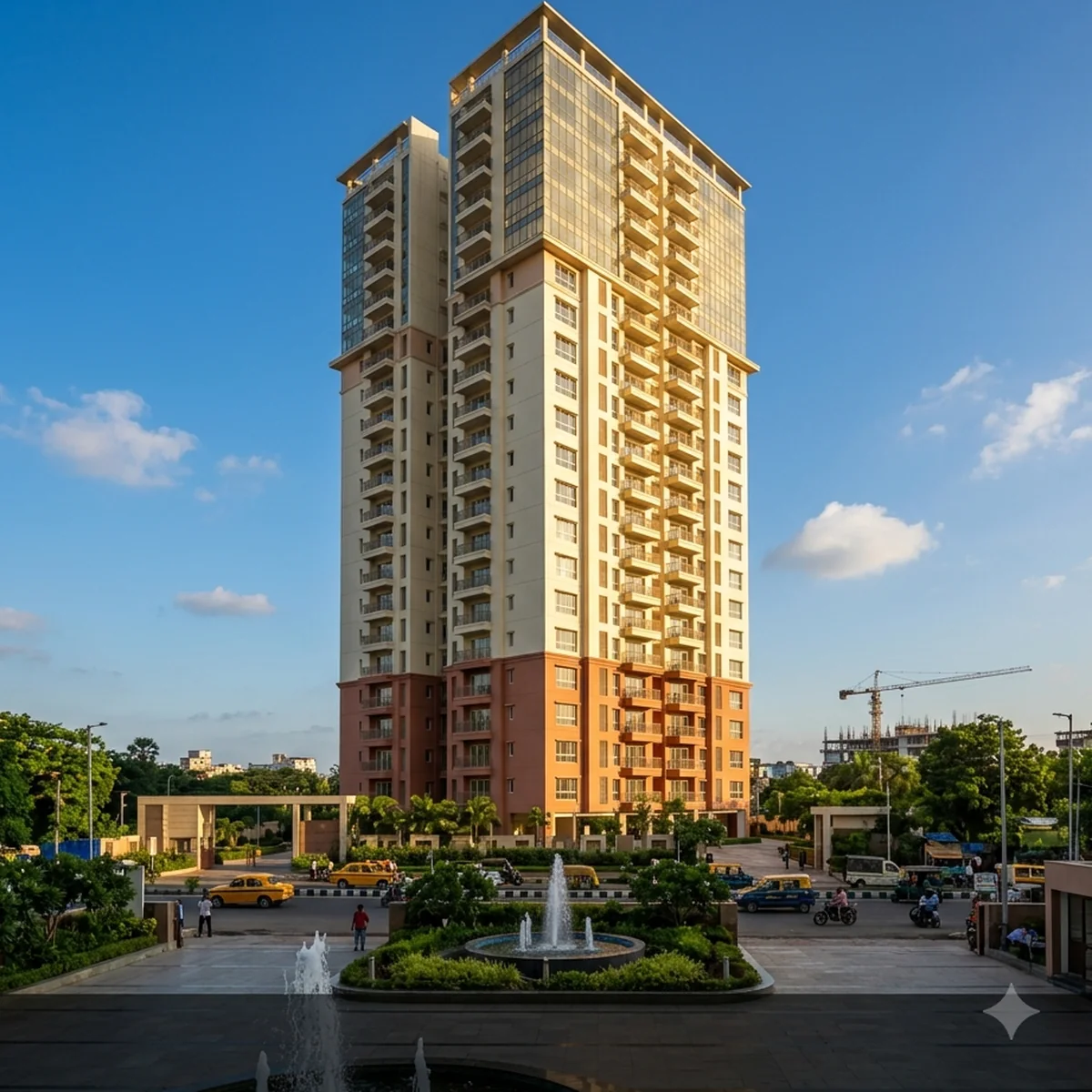

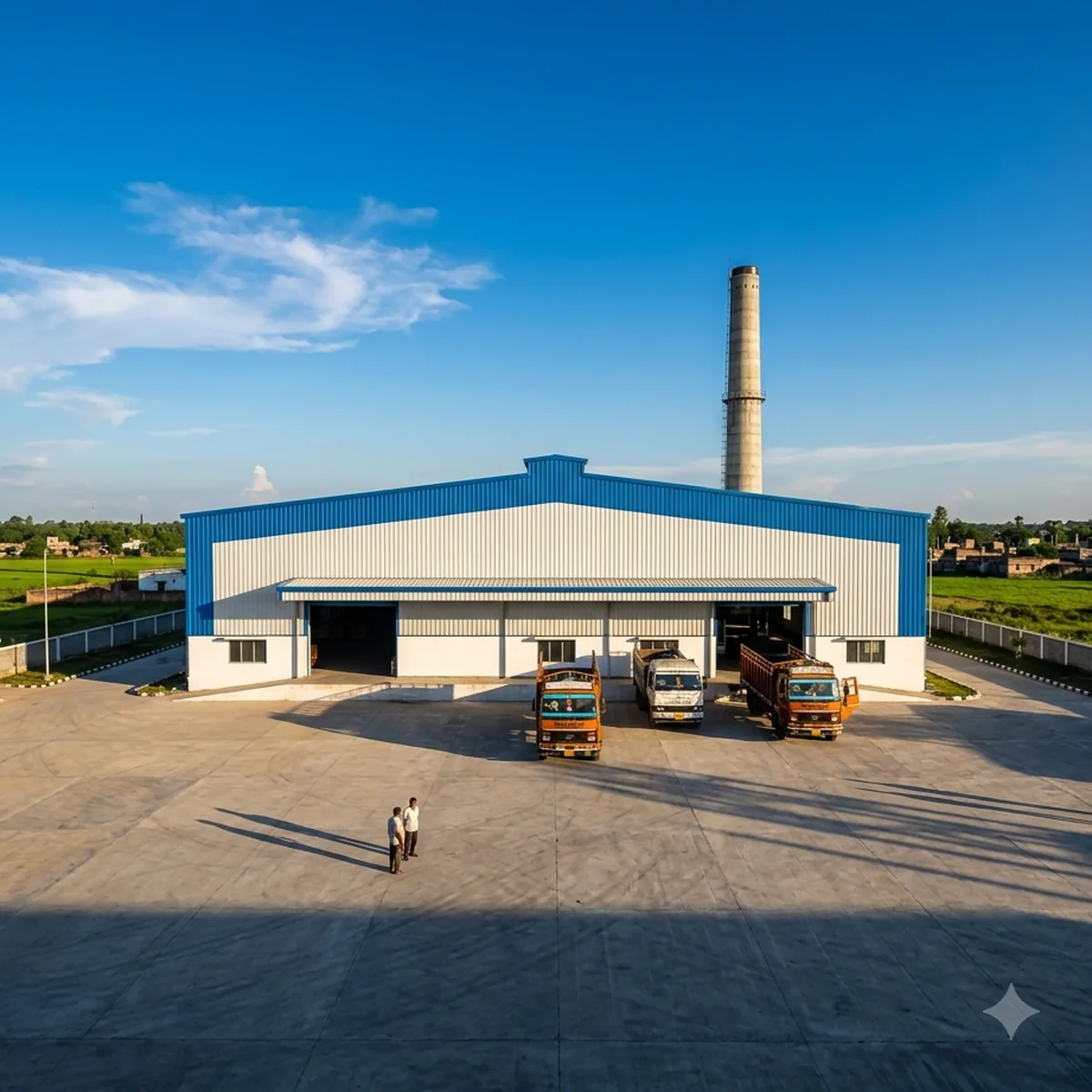

Applications

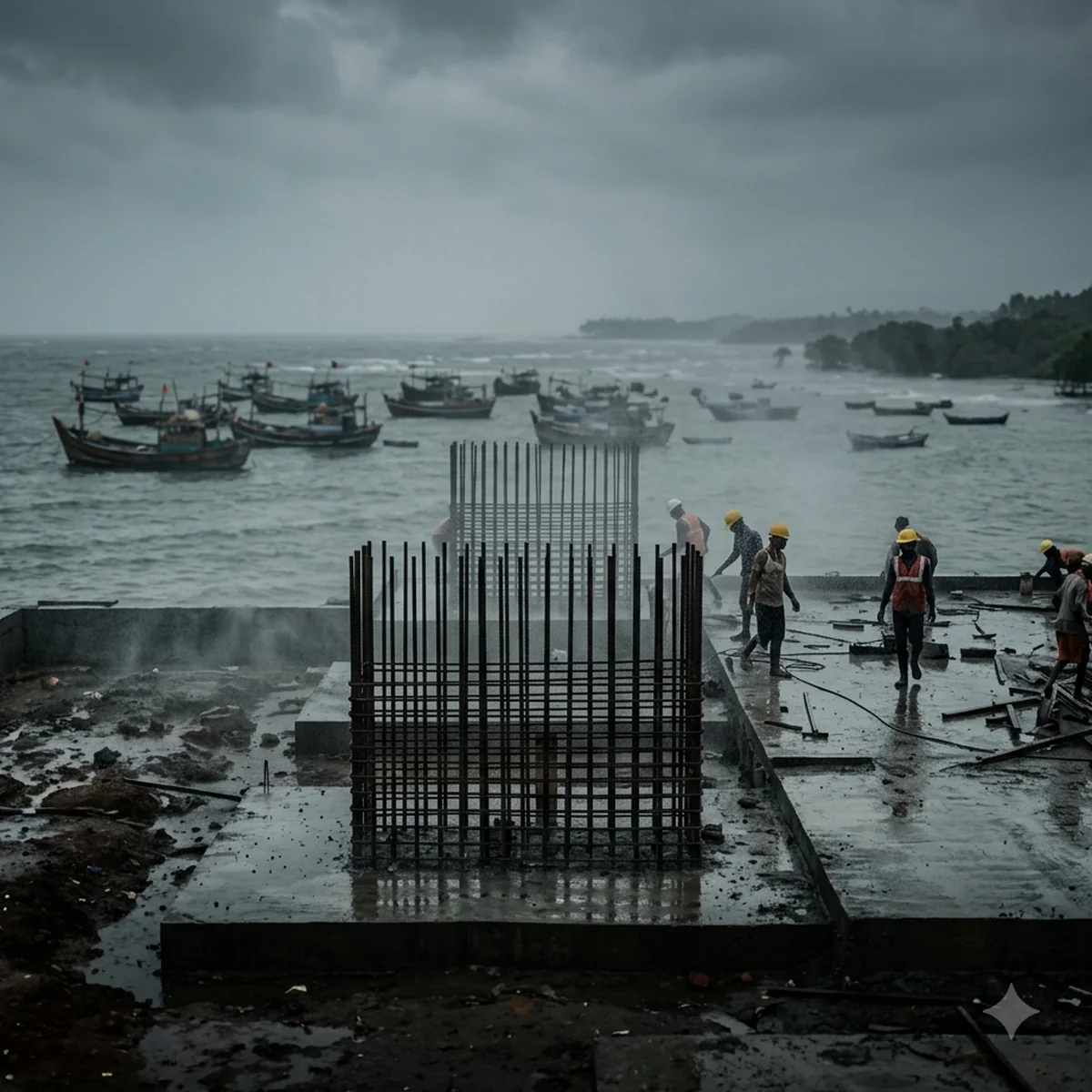

Coastal
Riverside and brackish-water sites

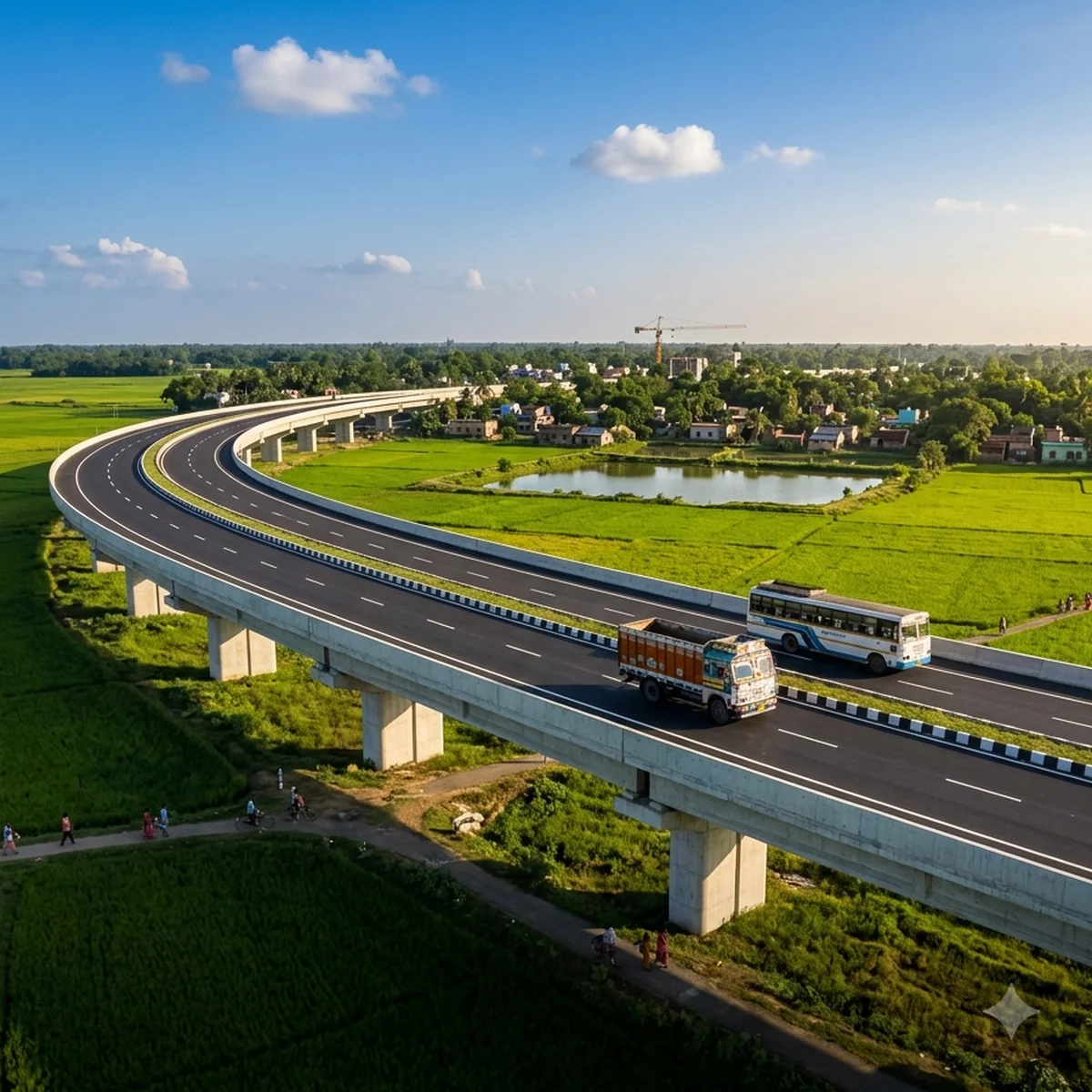

Infrastructure
Culverts, retaining walls

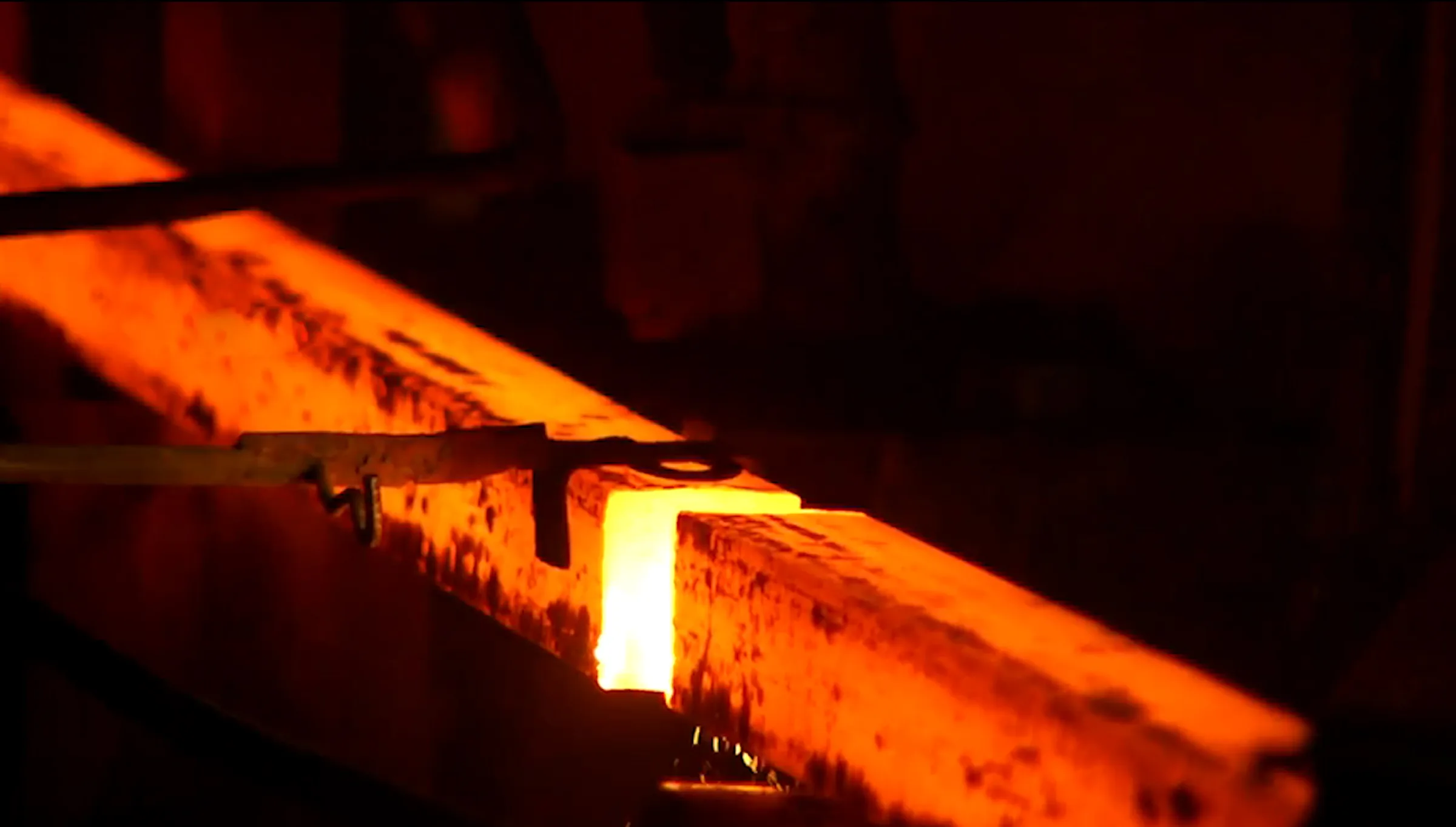

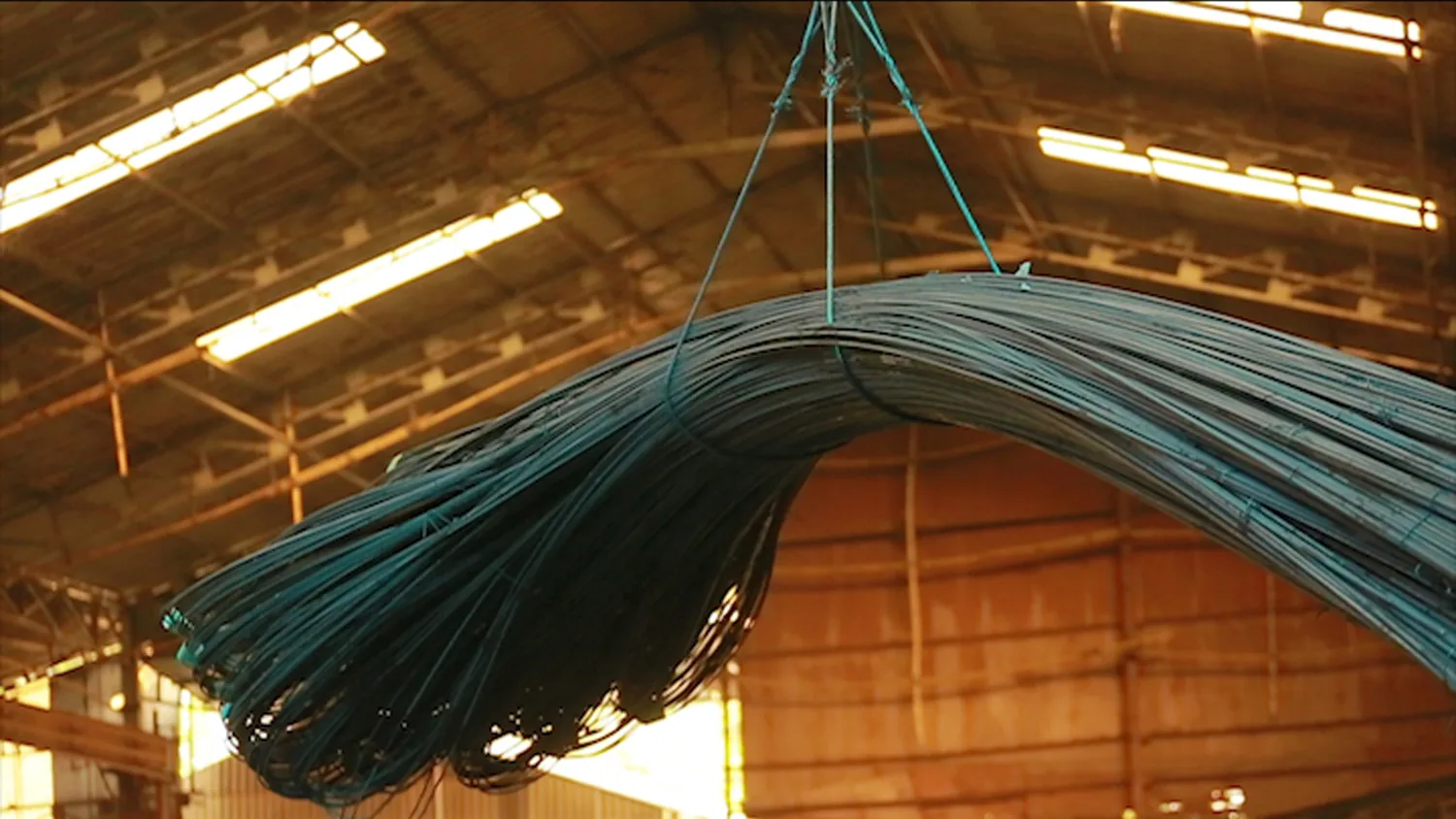

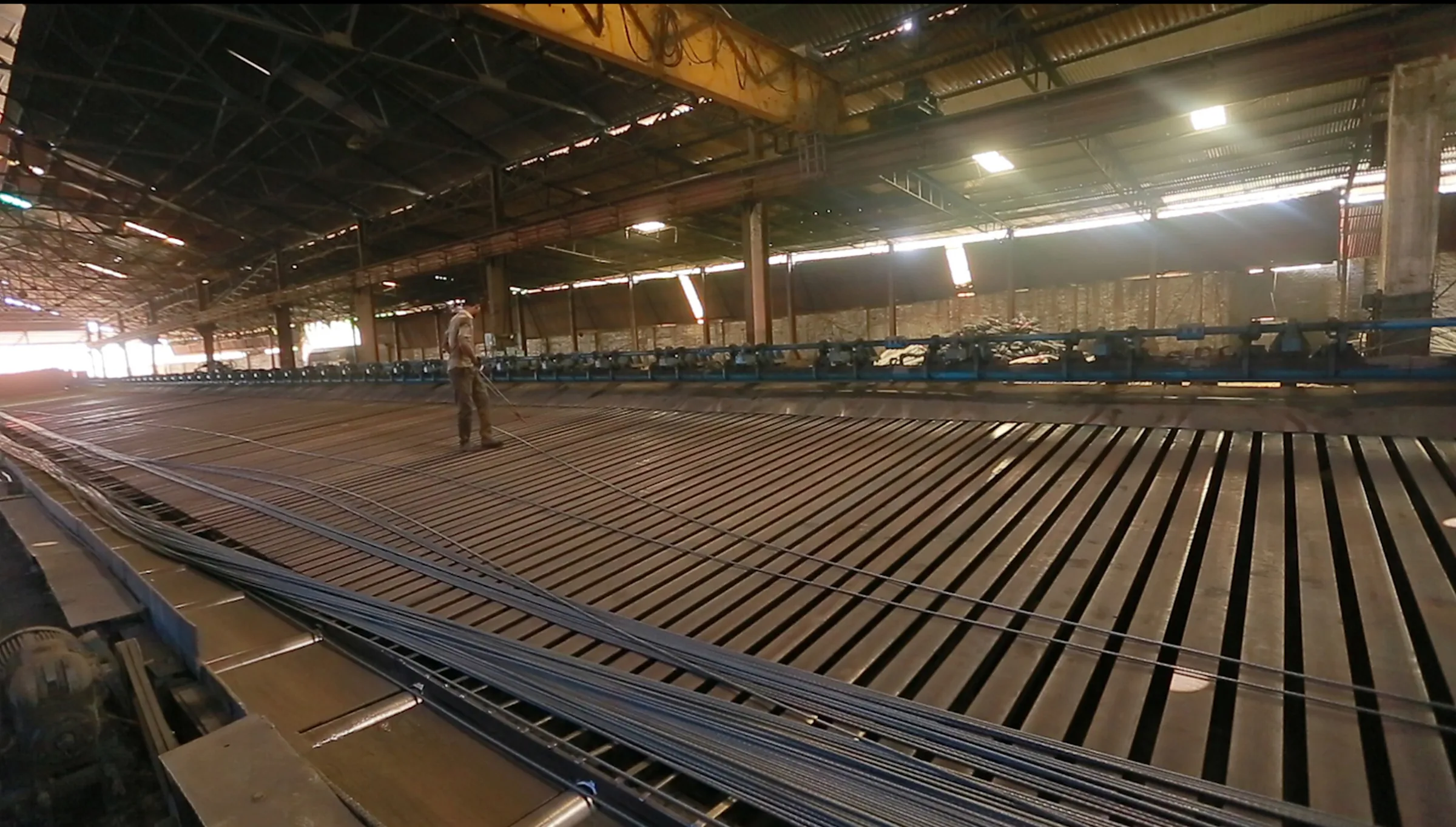

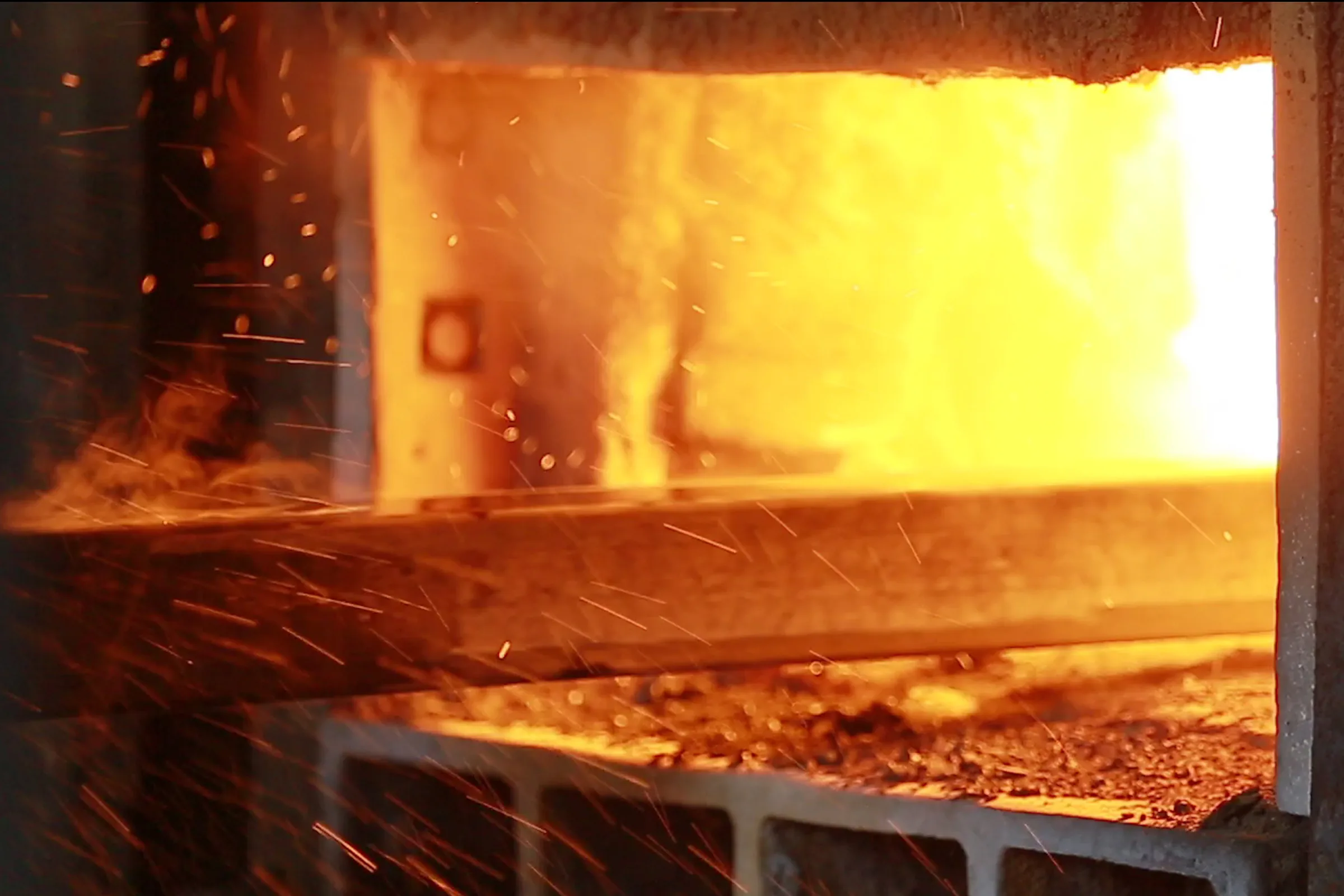

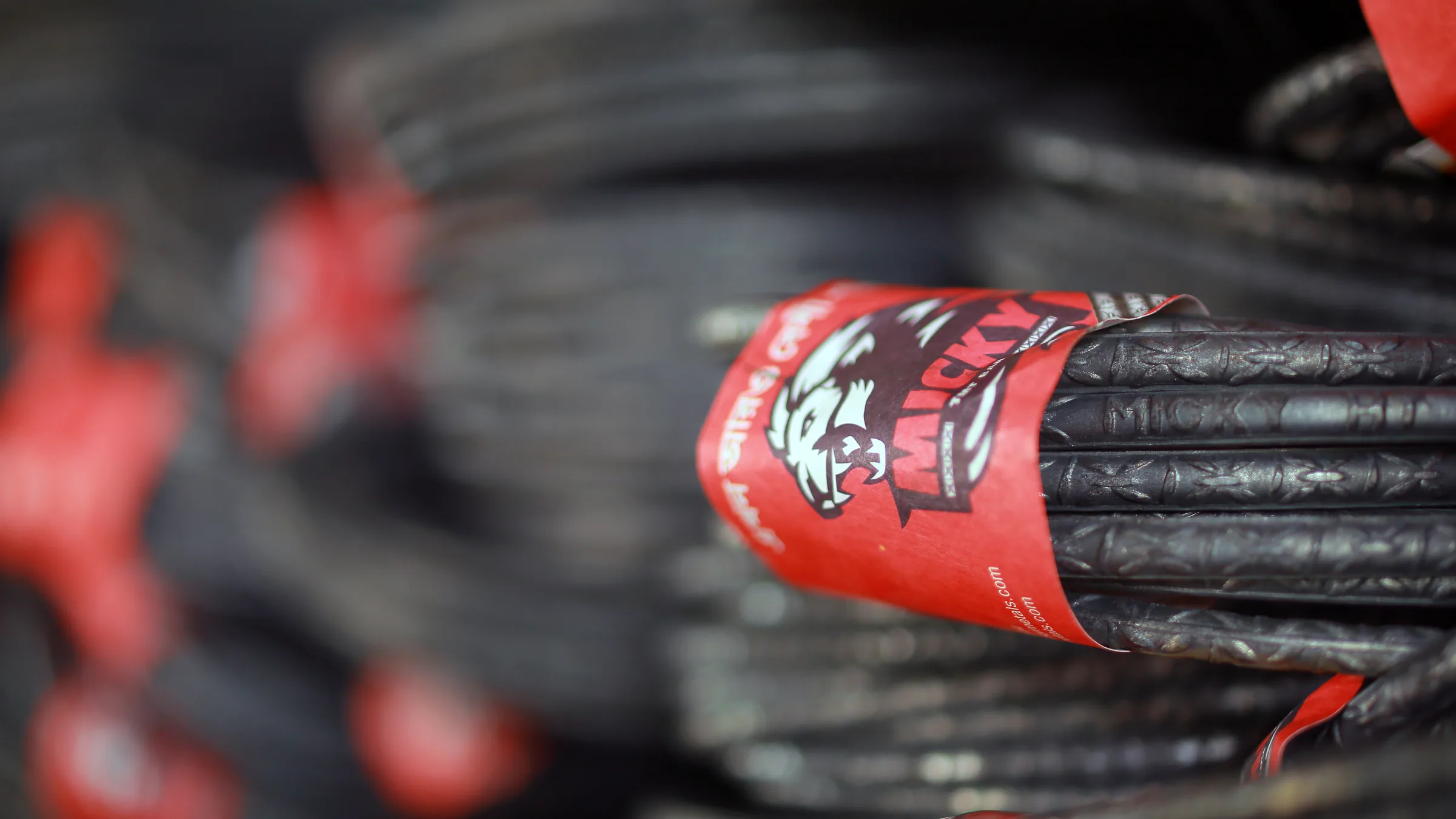

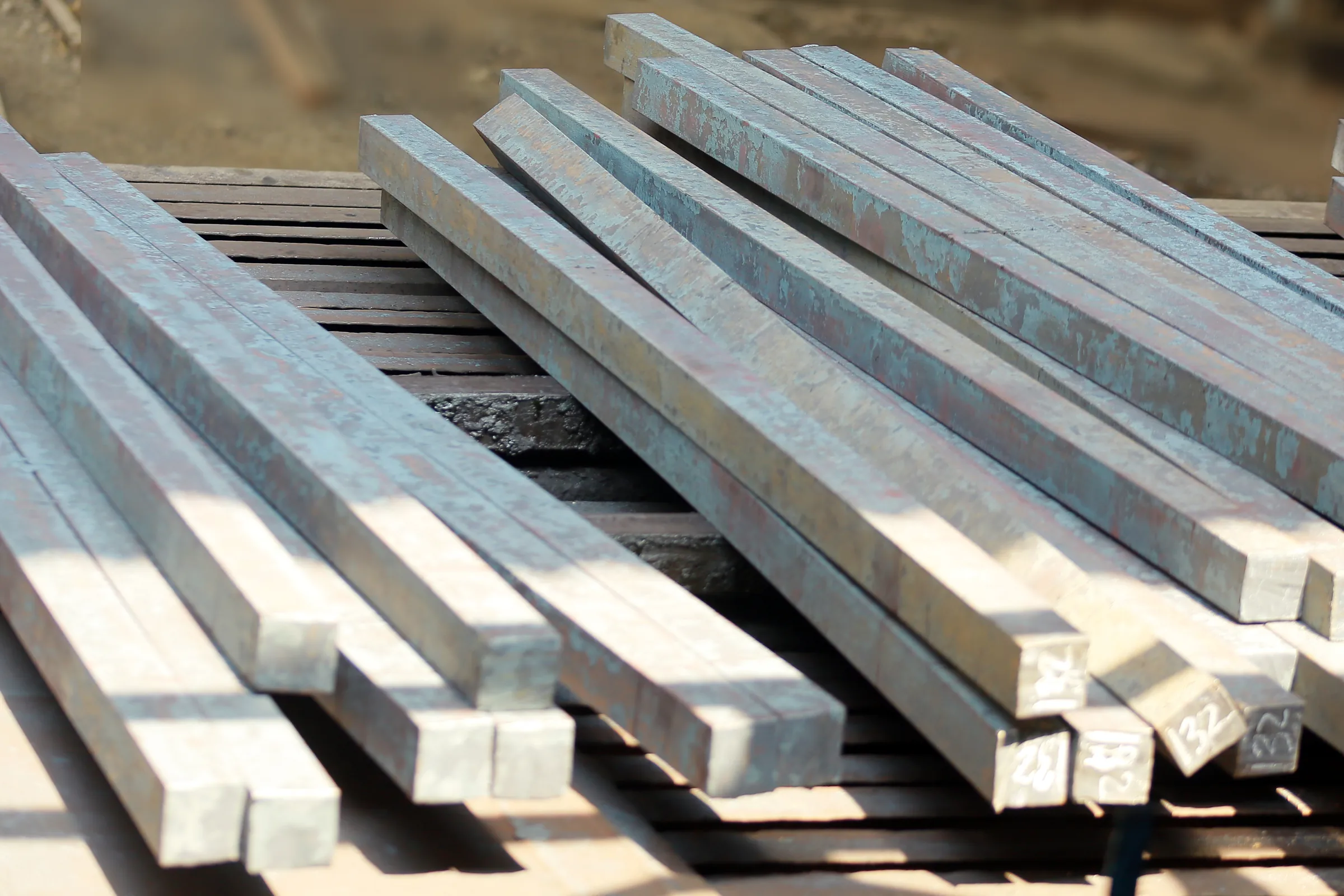

From billet to bundle

Technical data

Mechanical properties, IS 1786:2008+

Property	Fe 500	Fe 500D	Fe 550	POWER+ 600 SD
Yield strength (N/mm²)	500	500	550	550
UTS (N/mm²)	545	565	585	699
Elongation (%)	12	16	10	21

Chemical composition, maximum %+

Element	Fe 500	Fe 500D	Fe 600	POWER+ 600 SD
Carbon	0.30	0.25	0.30	0.25
Sulphur	0.055	0.04	0.04	0.035
Phosphorus	0.055	0.04	0.04	0.035
S + P	0.105	0.075	0.075	0.07

Sizes, section weight and BIS tolerance+

Nominal size (mm)	Nominal wt (kg/m)	BIS range (kg/m)	POWER+ avg wt (kg/m)	Pieces / bundle
8	0.395	0.367 – 0.423	0.375	16
10	0.617	0.574 – 0.660	0.58	10
12	0.888	0.844 – 0.932	0.85	7
16	1.58	1.501 – 1.659	1.51	4
20	2.47	2.396 – 2.544	2.41	2
25	3.85	3.734 – 3.966	3.75	2
28	4.83	4.685 – 4.975	4.73	—
32	6.31	6.121 – 6.499	6.21	1
